Concertina Wire - Military or Boundary Fence

  • Stainless steel 304 concertina wire, 18 inch diameter and 2500 feet length.
  • Razor wire concertina, coil diameter: 980 mm.
  • Concertina razor wire, 30" diameter crossed concertina galvanized wire coil, 65 feet length.
  • Concertina BTO-30, core wire diameter: 2.8 mm, outside diameter: 450 mm, blade thickness: 0.5 mm, cross type.
  • Concertina razor wire, material: stainless steel, coil diameter: 980 and 730 mm high, roll length: 30-50 m, distances of blades: 60 mm.
  • Concertina razor wire, 45 cm coil diameter, 4200 m length as boundary wall for protection
  • Razor blade concertina, coil diameter: 45, 70, 73, 90 cm, galvanized core wire diameter: 1, 1.5, 2 mm.
  • Concertina wire on top of welded fence for border military security fence, 18 km length and 3.6 m high.
  • A compressed coil of concertina wire is on the floor.

    Galvanized concertina wire.

  • Many coils PVC coated orange color concertina wire are placed together.

    PVC coated orange color concertina wire.

  • Stainless steel concertina razor wire.
    • Outside diameter: 450-500 mm.
    • Blade type: CBT-65.
    • Length per coil: 15 m.
    • Coil diameter: 960 mm.
    • Stainless steel clip: cross type.
  • Concertina razor barbed tape wire - anti piracy.
    • Coil diameters min 730 mm.
    • Strip and core wire material: 301 stainless steel.
    • Core wire diameter: 2.5 mm.
    • Blade thickness: 0.5 mm.
    • Blade length: 12 mm - 65 mm.
    • blade spacing: 26 mm.
    • Spreading length per roll: min 14 m.
  • Concertina wire for plant boundary wall.
    • Blade type: CBT-65, cross type.
    • Core wire diameter: 2.5 mm.
    • Outside diameter: 800 mm.
    • Ring to ring distance: 15 - 18 cm.
    • Razor distance: 100 mm.
    • SS304 blade thickness: 0.5 mm.
    • Blade length: 65 mm.
    • Blade width: 21 mm.
    • Blade space: 100 mm.
    • Loops per coil: 56.
    • Standard length: 8.5 m per coil.
    • Length: 1900 m.
    • Minimum weight: 17 kg per coil.
  • SS316 grade concertina double coil razor tape.
    • Razor wire standard: CBT-65.
    • Outer coil diameter: 762 mm.
    • Inner coil diameter: 600 mm.
    • Blade thickness: 0.58 mm.
    • Blade width: 19 mm.
    • Blade length: 25 mm.
    • Blades distance: 102 mm.
    • Number of loops per coil: 66.
  • Stainless steel concertina cross type.
    • Blade type: CBT-65.
    • Core wire diameter: 2.5 mm.
    • Blade length: 65 mm.
    • Blade width: 21 mm.
    • Blade spacing: 100 mm.
    • Blade thickness: 0.6 mm.
    • Coil diameter: 730 mm.
    • Roll length: 50 feet.
  • Stainless steel concertina cross type.
    • Blade type: BTO-22.
    • Core wire diameter: 2.5 mm.
    • Blade length: 22 mm.
    • Blade width: 15 mm.
    • Blade spacing: 34 mm.
    • Blade thickness: 0.5 mm.
    • Coil diameter: 980 mm.
    • Roll length: 650 m.
  • Concertina coil barbed wire - single coil.
    • Blade type: CBT-65.
    • Wire diameter: 2.5 mm.
    • Blade thickness: 0.5 mm.
    • Blade length: 65 mm.
    • Blade width: 21 mm.
    • Blade spacing: 100 mm.
    • Outside diameter: 7 00 mm-730 mm.
    • Number of loops: 56.
    • Materials: stainless steel or galvanized steel.
  • Double concertina razor coil.
    • Material: stainless steel 304.
    • Inside coil diameter: 600 mm.
    • Outside coil diameter: 750 mm.
    • Blade type: BTO-12, BTO-22, BTO-30.
  • Concertina wire.
    • Blade type: BTO-22.
    • Coil diameter: 700 mm.
    • Core wire diameter: 2.5 mm.
    • Blade thickness: 0.5 mm.
    • Blade length: 22 mm.
    • Blade width: 15 mm.
    • Blade spacing: 34 mm.
    • Number of circles: 72.
    • Standard covered length: 7 - 8 m.
    • Maximal covered length: 10 m.
    • Coating thickness: 125 - 145 g/m2.

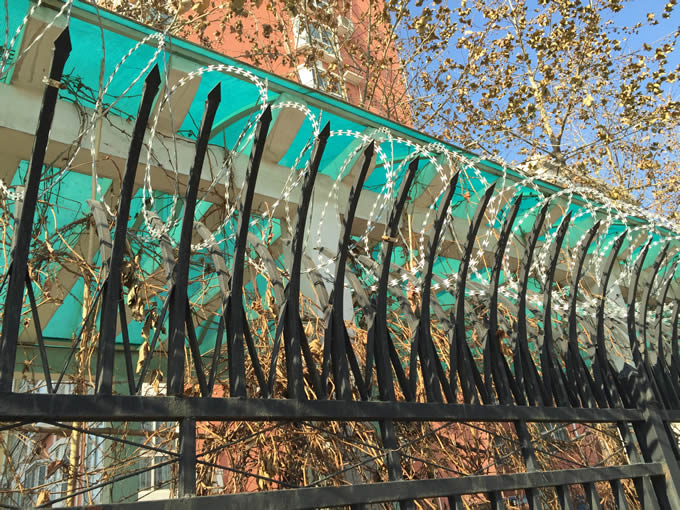

  • A coil of single type concertina wire is installed on the top of black welded fence by Y-shaped post.

    Single type concertina wire as reinforced security wall.

  • Barbed tape concertina razor wire - anti-piracy.
    • Coil diameter before stretching: 1000 mm.
    • Coil diameter after stretching: 900 mm.
    • Stretched length: 15 m.
    • Core wire diameter: 2.5 mm.
    • Blade thickness: 0.5 mm.
    • Blade length: 22 mm.
    • Blade width: 15 mm.
    • Bard spacing: 34 mm.
  • Blade type wire concertina.
    • Material: stainless steel.
    • Wire diameter: 2.5 mm single strand.
    • Coil diameter: 1016 mm.
    • Blade thickness: 0.64 mm.
    • Blade distance: 18 mm.
    • Blade length: 11 mm.
    • Blade width: 13 mm.
    • Shape of blade: square type.
    • Number of turns per coil: 68.
    • Extended length of coil: 15-20 m.
  • Concertina razor wire.
    • Blade type: CBT-65.
    • Core wire diameter: 2.5 mm.
    • Blade length: 65 mm.
    • Blade width: 21 mm.
    • Blade spacing: 100 mm.
    • Coil diameter: 960 mm.
    • Spiral turns per coil: 53.
    • Stretch length per coil: 13 m.
    • SS304 tie wire diameter: 1.2 mm.
  • Razor barbed tape with chain link fence.
    • Blade type: BTO-30.
    • Core wire diameter: 2.5 mm.
    • Blade thickness: 0.5 mm.
    • Blade width 18 mm.
    • Blade spacing: 45 mm.
    • Coil diameter: 960 mm.
    • Number of loop: 56.
    • Standard length per coil: 14-15 m.
    • Additional information: zinc coated chain link fence, 9 gauge wire, 2" mesh opening, 60" height × 50' length.
  • Razor barbed wire concertina.
    • Blade type: CBT-65.
    • Material: SS304.
    • Coil diameter: 960 mm diameter.
    • Roll length: 12 m long.
  • Concertina razor wire.
    • Coil diameter: 900 mm.
    • Core wire diameter: 2.5 mm.
    • Blade thickness: 0.5 mm.
    • Blade length: 22 mm.
    • Blade distance: 13 mm.
    • Stretching length: 15 m.
  • Concertina razor wire.
    • Coil diameter: 450 mm.
    • Core wire diameter: 2.5 mm.
    • Blade thickness: 0.5 mm.
    • Blade length: 22 mm.
    • Blade distance: 13 mm.
    • Stretching length: 10 m.
  • Stainless steel concertina razor wire with stainless steel clips.
    • Blade type: CBT-65.
    • Outside diameter: 450-500 mm.
    • Length per coil: 15 m.
  • Concertina coil.
    • Material: stainless steel 304.
    • Blade type: CBT-65.
    • Coil diameter: 960 mm.
    • Core wire diameter: 2.5 mm.
    • Blade thickness: 0.5 mm.
    • Blade length: 65 mm.
    • Blade width: 21 mm.
    • Blade spacing: 100 mm.
    • Number of spiral turns: 53.
    • Stainless steel binding wire diameter: 3 mm.
    • Length per coil: 13 m.
  • A stretching coil of PVC concertina wire in green color.

    PVC concertina wire in green color.

  • A stretching coil of galvanized concertina wire in cross type.

    Galvanized concertina wire in cross type.

  • A coil of concertina wire is o the top of PVC blue color coated chain link fence.

    Concertina wire is combined with chain link fence as security fence.
