Welded razor wire mesh is used in airports and military bases

Welded Razor wire image

Welded razor barbed wire is flat, so it looks aesthetically and can be used in places for people or car security where has more people. Welded razor wire mesh is a grid that has cells in the form of lozenges, made of razor barbed reinforced tape. Most welded razor wire is a canvas, rolled up in rolls.

Welded razor mesh available in a canvas 2000 mm high and has a diamond-shaped cells with a face of 242 mm, height of the diamond about 450 mm, width of the diamond 190 mm. At the vertices are connected by straps diamonds, similar bracket, used in the manufacture of concertina wire and flat barrier razor wire. Its length can vary up to 50 meters, which also affects the price of the product and installation costs. As a rule, often welded razor fencing in length is from 4 to 15-meter, as this size is most convenient for the installation of barbed wire. Before installing the razor mesh is necessary to prepare the frame. It is based on vertical racks made of galvanized pipes. They are connected by transverse bars, which will be attached to the upper part of the grid. Frequency setting poles shall be designed so that they could make installation of razor cloth desired length. The optimal distance between two adjacent columns should be no more than 2 meters. Fixing of razor barbed wire is carried to the posts and the upper cross-beams using special anchors or brackets. Mounting must be implemented so that the upper ends of the razor barbed wire diamonds above the top crossbar and prevent the penetration of the fence. At the request of the customer welded razor fence bottom may bury in the ground to 500 mm. Razor wire is galvanized, so it does not spoil the action of moisture in the soil. After installing the razor barbed wire does not need additional treatment, as it is processed further corrosion composition at the factory.

Using the following materials to make welded razor wire barbed tape:

  • Galvanized steel thickness of 0.55 - 0.58 mm.
  • Galvanized wire is made of high carbon steel diameter of 2.4 - 2.5 mm.

The benefits of razor mesh security fence:

  1. It is almost impossible to climb.
  2. High-strength steel core very difficult to cut off.
  3. Powerful security fence barriers neat appearance.
  4. No secondary use, so he will not be stolen.
  5. Simple to install.

Welded razor wire is used in airports, military bases, water substation, the border fence, oil depots, factories.

  • Welded Razor wire mesh, height 2000mm and width 4000mm

    welded razor mesh

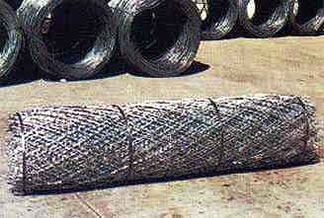

  • Welded razor mesh in roll

    welded razor mesh roll
