Razor Wire Machine

Razor Wire Machine

Our factory can supply razor wire machine to produce different sizes of razor barbed wire.
Output of 24 hours: 500 kgs.
It is equipped with cutters of 5 different shapes.
Razor barbed wire coil diameter: 450 mm; 500 mm; 700 mm; 960 mm.
Razor barbed wire material: Galvanized wire and stainless steel wire.

Features:
Razor barbed wire machine is light, easy to operate, high efficient.
Using this type of razor barbed wire machine can save you twenty percent of raw materials in production.

Structure:
The razor wire machine is composed of the main machine producing strip plates and the coiling machine that coils the wire into the strip plate.

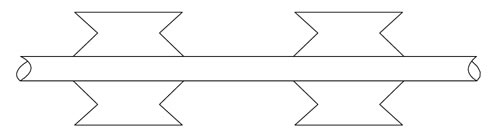

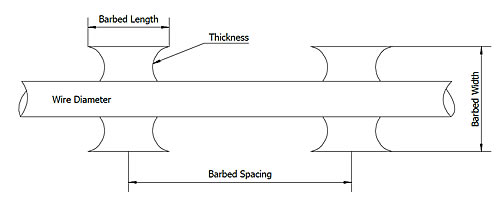

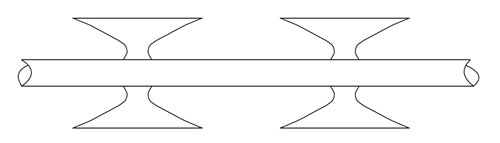

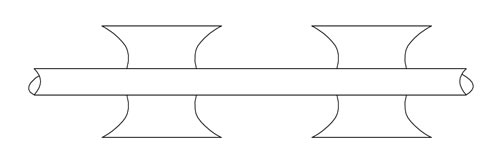

A1

Thickness: 0.5mm
Wire Dia.: 2.5mm
Barb Length: 10mm
Barb Width: 13mm
Barb Spacing: 26mm

A2

Thickness: 0.5mm
Wire Dia.: 2.5mm
Barb Length: 20mm
Barb Width: 15mm
Barb Spacing: 33mm

A3

Thickness: 0.5mm
Wire Dia.: 2.5mm
Barb Length: 15mm
Barb Width: 15mm
Barb Spacing: 33mm

A4

Thickness: 0.5mm
Wire Dia.: 2.5mm
Barb Length: 22mm
Barb Width: 16mm
Barb Spacing: 36mm

A5

Thickness: 0.6mm
Wire Dia.: 2.5mm
Barb Length: 65mm
Barb Width: 22mm
Barb Spacing: 102mm
