Mobile Razor Wire Security Barrier- Rapid deployment

Mobile Razor Wire Security Barrier unfolded and the folded state diagram

It is designed for rapid deployment of effective barriers during the police and other special operations, used in security and rescue or riot control. It is a serious obstacle to the entry of people and vehicles. Mobile razor fence security barrier is packed in a container. The container is made of wire with a diameter of 6 mm in the form of 2 baskets with 4 knobs and 3 locks to connect the circuit and baskets for transporting. It is a spiral security barrier concertina enclosed in a specially designed lightweight cassette that provides the ability to quickly deploy, collapse of the barrier, and its safe transportation. The mobile security barrier is designed for portability, expanding and collapsing the calculation of two people. Ease of assembly is ensured by special hooks. The ends of the coil fixed to the basket brackets. On handles attached rope with hooks to secure the baskets for the materials at hand when you install the mobile barrier.

Mobile razor wire security barrier specification:

  • Dimensions folded: 700 × 1112 × 1232 mm.
  • The length of the unfolded state: 10-80 m.
  • Height: 1 m.
  • Weight: 50-200 kg.
  • Diameter of the helix: 900-1000 mm.
  • Deployment time: 1-3 minutes.
  • Clotting time: 5-10 minutes.

Mobile razor wire concertina is produced in two versions: 900/10 and 900/20. Distinguished by its length in the unfolded state, which is 10 and 20 meters respectively. The unfolded length of both models is 900 meters.

The concertina coils of the product are linked in a special way in 7 equidistant points on a circle, so that it is a very effective physical barrier. The design provides, if necessary, the ability to attach to the fixed supports (poles, trees, standing tow vehicles, etc.) to prevent its demolition in the operations. It is intended to enclose an area, including after accidents, to prevent unauthorized persons entering the restricted zone. In addition, you can connect with each other products in any quantity for any length of the barrier.

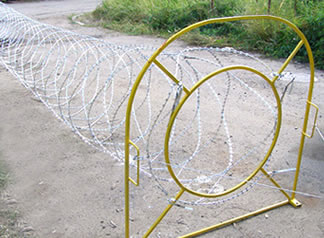

  • Mobile barrier spiral razor concertina

    Mobile barrier spiral razor concertina

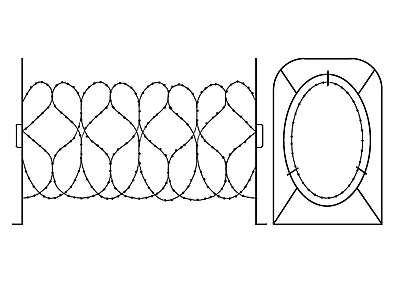

  • Mobile barrier spiral razor concertina schematic diagram

    Mobile barrier spiral razor concertina schematic diagram

Mobile security barrier concertina (rapid deployment high-density razor mesh)

  • Mobile security barrier concertina

    Mobile security barrier concertina

  • deploying high-density razor wire mesh

    Deploying high-density razor wire mesh

  1. Mobile security barrier concertina is intended to provide quick protection, the range of 75-1000 meters of razor wire barrier can be deployed within a few seconds.
  2. This mobile security barrier concertina can be reused.
  3. Provided to the uplift and re-compress into modules, the barrier is easy to handle and compression storage.
  4. Adjusted according to customer requirements, to meet different specific requirements.
  5. Various military organizations are in need of such tools for effective isolation barrier.
  6. In civilian areas, mobile security barrier also have a wide application range.

The most popular size:

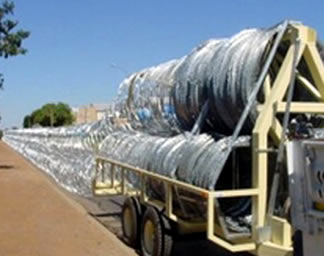

  • Mobile rapid deploy barbed tape/ razor wire coils fencing towed by a vehicle.
  • Length of barrier after uncovering: ≥ 75m.
  • Height of barrier after uncovering: ≥ 1600mm.
