Spiral Razor Wire Fence - spiral razor obstacles

  • Spiral Razor Wire
  • Spiral razor wire is installed on the wall with 2 rows

Spiral razor wire security barrier, is a spiral razor barbed fence, where razor concertina wire suite spiral coils which are interconnected at several points in a certain pattern. Spiral security barrier razor is much more efficient single-reinforced barbed tape concertina and barriers of conventional barbed wire, to overcome or destroy it is very difficult.

We produce a wide range of spiral razor obstacles barbed tape. In the fence barbed wire can be used in different types. In addition, spiral razor wire fence have different diameter coil, and differ in the number of clamps, fastening the coils.

In general, the larger the razor concertina cross section, the larger the diameter of the spiral coil, the greater the staples used to bond the turns of the spiral razor fence and the less the length of the razor wire, the more efficient running spiral razor security barrier.

Using galvanized wire and galvanized staples fix the spiral razor wire fence.

Spiral Razor Wire

Razor wire and barbed wire project:

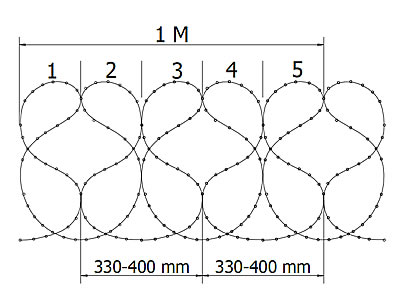

Galvanized spiral razor wire to be installed in natural loops without clips, with following date:

  • Diameter of coil (lying horizontally) - 500 mm.
  • Steel wire thickness - 2.5 mm.
  • Blade length - 20 mm.
  • Blade thickness - 0.5 mm.
  • Blade width (depth) - 10 mm.
  • Clear distance between blades - 25 mm.
  • Number of loops (spirals) / metre - 4.

Barbed wire galvanized 2 mm thick, galvanized sections are to be hot dipped with 120 gm/m2 to 130 gm/m2 thickness of zinc coating.
