Hot Dip Galvanized Razor Coil Wire series

Hot dip galvanized flat razor wire specifications:

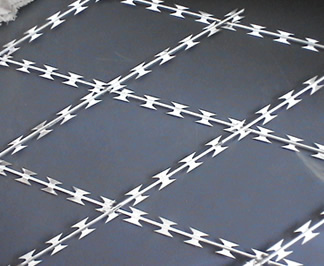

Hot dipped galvanized 60 cm flat wrap razor wire:

  • Coil height: 60cm.
  • Coil weight: 30 kg, 50 kg.
  • Coil length: 16 m.
  • Barb type: BTO-10.
  • Packing: wrapped with paper and then wrapped with woven bag.
  • Packing of the rolls will be 6 coils in a big roll.
  • Inside wire: 2.50 mm (-0.00, +0.10 mm), tensile strength: 160kg/mm2 (min).
  • Zinc plate: 120 gr/m2 (min) hot dipped galvanized steel wire.
  • Outside sheet: 0.50 mm (-0.00, +0.10 mm) ,Hot dipped Galvanized.

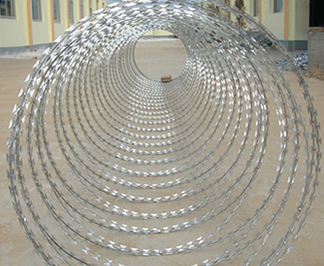

Hot dipped galvanized single coil razor wire:

  • Coil diameter: 100 cm.
  • Coil weight: 16 kg.
  • Barb type: BTO-10.
  • Packing: wrapped with paper and then wrapped with woven bag.
  • Inside wire: 2.50 mm (-0.00, +0.10 mm) ,tensile strength: 160 kg/mm2 (min).
  • Zinc plate: 120 gr/m2 (min) hot dipped galvanized steel wire.
  • Outside sheet: 0.50 mm (-0.00, +0.10 mm) hot dipped galvanized, bright, shinny.

Hot dipped galvanized 45 cm cross type razor wire:

  • 45 cm circle, cross type, 56 loops, Ideal opening 6-7 m, Max.opening: 8.5-9.5 m, 3 tie clips.
  • Coil diameter: 45 cm.
  • Coil weight: 7kg.
  • Barb type: BTO-10.
  • Packing: wrapped with paper and then wrapped with woven bag.
  • Inside wire: 2.50 mm (-0.00, +0.10 mm) ,tensile strength: 160 kg/mm2 (min),
  • Zinc plate: 120 gr/m2 (min) hot dipped galvanized steel wire.
  • Outside sheet: 0.50 mm (-0.00, +0.10 mm) Hot dipped Galvanized.
